MARS 6 Extraction

CEM

MARS 6 Extraction

Microwave Extraction System

High-throughput extraction.

Information

The MARS™ 6 is an advanced microwave instrument that can be configured for solvent extraction. With an industry leading 2000 watts of delivered power, it is the perfect choice for preparing samples for USEPA 3546. The MARS 6 can easily prepare up to 40 samples in a single batch, providing the highest throughput and lowest cost per test.

Features:

  • Extract 40 samples in only 25 minutes
  • 95% solvent reduction compared to Soxhlet
  • Advanced vessel sensors count vessels and apply power appropriately
  • Flexible, open architecture design allows the introduction of a variety of different vessel types



How it Works

Save time and money with microwave extraction.
The MARS 6 can prepare up to 40 samples in a single batch in 25 minutes, providing the highest throughput and the lowest cost per test available. The system’s all-vessel temperature control and patented PowerMAX technologies offer an unsurpassed degree of measurement and control, while the proprietary One Touch Technology provides remarkable ease of use.

One-Touch Technology
Pre-installed methods, one touch away.
By selecting the One-Touch icon on the MARS 6 touch screen, you’ll be able to choose the sample type from the pre-installed methods. From there, it will automatically detect the type of vessel you are using, count the vessels, adjust the power accordingly, and perform the extraction for you. It couldn’t be easier.

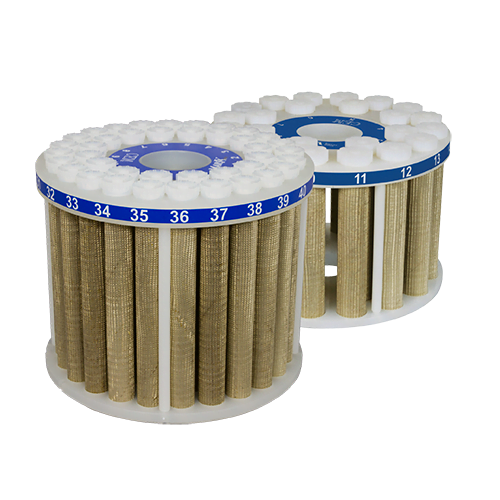

Vessels

Vessels designed with you in mind.

  • The MARSXpress Vessel
    The 75 mL MARSXpress vessel is the perfect choice for USEPA 3546. It allows for sample sizes of up to 20 grams to be extracted. The simple 3-part design make them remarkably easy to use. Up to 40 samples can be processed simultaneously, providing laboratories the lowest cost per test of any system on the market.
  • The MARSXpress Plus Vessel with Optional Glass Liner
    The MARSXpress vessel has a large volume of 110 mL allowing you to process samples of up to 30 grams. It can also be used with a convenient, disposable, glass liner to eliminate washing steps between runs. In addition, the glass liner protects the Teflon® vessel from highly concentrated contaminants.
